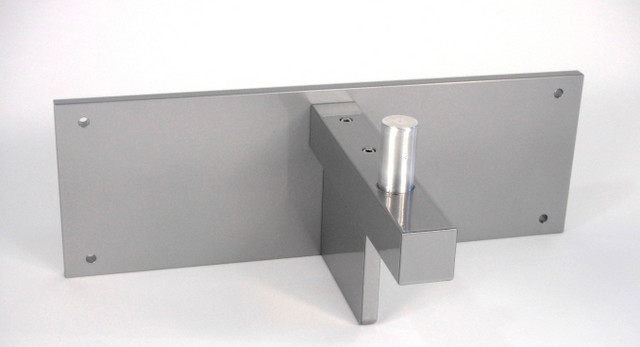

Wall Mount Assembly

Our Wall Mount Assembly is a simple, compact and heavy duty assembly that's made to fit nearly any anesthesia machine and wall/column that the machine needs to be mounted to. It's made up of four or six pieces depending on the set up you need.

Note: If you are looking to mount a machine you already own you may need a adaptor or custom part/s that are made to fit your machine specifically. We want to make sure that your machine is as safe and user friendly so that it fits your practices needs to a tee.

Includes:

Wall Mount Plate- Plate gets bolted into a wall or column. Has 4 mounting holes, holes are 16 inches centered. 1/2" thick x 17" Length.

Wall Mount Arm- anesthesia machine attaches at the end of this arm. 1 1/2" squared x 9 1/2" Length.

Gusset- square piece that attaches to bottom of Wall Mount Arm. Gussets function is give the Wall Mount Arm extra stability and strength due to anesthesia machines weight.

Pin- holds anesthesia machine in place.

Accessory

Swing Arm w/ Pin- is available in case you need the machine out further than our standard 9 1/2" from the wall. 1 1/2"  squared x 16" Length. Total inches out from the wall is 25 inches. Additional cost $70.00.
